Akor Stainless is a Abuja, Nigeria-based company renowned for its manufacturing and supply of various quality metal products for several industries across the world. The organisation has been well known and appreciated among its clients for its quality services and customer satisfaction. One of the products is the Stainless Steel Chequered Plate. Made from the finest stainless steel, the plates are meant to be highly resilient and very resistant to any kind of corrosion, especially in highly environment conditions. Being slip-resistant, they serve as an ideal choice for flooring, staircases, and industrial platforms. Each piece of Stainless Steel Chequered Plate is manufactured under stringent quality parameters, giving a reliable solution for industrial as well as commercial applications.
These Stainless Steel Chequered Plates are primarily made from SS 304, 304L, 316, and 316L grades, which include chromium (18–20%), nickel (8–12%), and trace amounts of carbon, manganese, and silicon. This blend boosts their resistance to corrosion, oxidation, and wear. The plates boast impressive tensile strength of up to 515 MPa and yield strength around 205 MPa, along with good elongation and formability. Their distinctive raised diamond or tear patterns enhance grip, while their strong mechanical properties ensure they hold up well under pressure and temperature changes, making them ideal for both structural and decorative applications.
ASTM A182 / ASME SA182
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
1000mm x 2000mm, 1000mm x 2500mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm
| Grade | C | Mn | P | S | Si | Cr | N | Ni | Fe |
| SS Chequered 304 Plates | 0.07max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | – | min: 8.0 max: 10.5 | – |
| SS Chequered 304L Sheets | 0.03max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | 0.10 max | min: 8.0 max: 12.0 | – |
| SS Chequered 304H Plate | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | 0.75 max | 2.0 max | min: 0.04 max:0.10 | 0.045 max | 0.10 max | 0.03 max | – |
| SS Checkered 316 Sheets | Min | – | – | 0 | – | – | 10.0 | 16.0 | – |
|---|---|---|---|---|---|---|---|---|---|
| Max | 0.08 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Checker 316L Plates | Min | – | – | – | – | – | 10.0 | 16.0 | – |
| Max | 0.03 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Chequered 316H Sheet | Min | 0.04 | 0 | – | 0.04 | – | 10.0 | 16.0 | – |
| max | 0.10 | 0.75 | 0.045 | 0.10 | 0.03 | 14.0 | 18.0 | – |
| Grade | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| Stainless Steel 304 / 304L Checkered Plate | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 304H Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 40 % |
| Stainless Steel 310 Checker Plate | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1402 °C (2555 °F) | 40 % |
| Stainless Steel 316 Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 316L Checker Plate | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1399 °C (2550 °F) | 35 % |
| Stainless Steel 317 Checker Sheets | 7.9 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 321 Checkered Plates | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1457 °C (2650 °F) | 35 % |
| Stainless Steel 347 Checker Sheets | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1454 °C (2650 °F) | 35 % |
| Stainless Steel 904L Checker Plate | 7.95 g/cm3 | Psi 32000, MPa 220 | Psi 71000, MPa 490 | 1350 °C (2460 °F) | 35 % |
Contact us to get a quick quote for your requirement.
304 stainless steel checker plates are durable, non-corrosive, and offer a slip-resistant surface. Ideal for industrial and commercial use, they combine strength with a lightweight, aesthetically pleasing design.
SS S30409 checker plates are high-quality stainless steel with excellent corrosion resistance and durability. Ideal for demanding environments, they offer a slip-resistant surface and maintain structural integrity under stress.

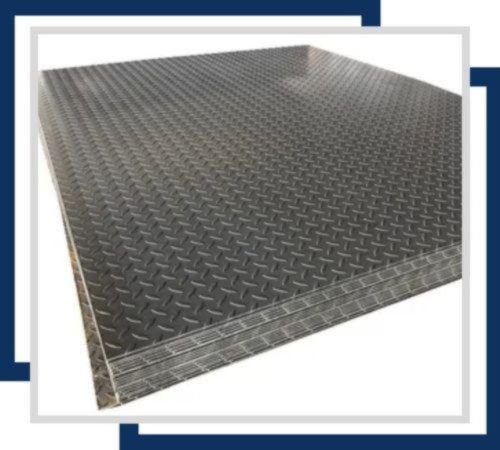

Stainless Steel S31609 chequered plates provide superior corrosion resistance and strength, making them ideal for marine and chemical environments. They offer excellent durability, slip resistance, and maintain integrity under harsh conditions.
Austenitic stainless steel chequered plates offer exceptional corrosion resistance, strength, and durability. Ideal for demanding environments, they provide a slip-resistant surface and maintain structural integrity in various industrial and commercial applications.
Quality is our prime concern, and hence our Stainless Steel Chequered Plates undergo exhaustive checks, like hardness, chemical analysis, PMI testing, flattening, micro/macro testing, pitting resistance, flaring, and IGC testing. We also supply related documentation as commercial invoices, packing lists, certificates of origin, and guarantee letters. In addition, we have our Third-Party Inspection Certificate to prove overall customer satisfaction to reassure customers of the guaranteed reliability and performance of our products.
Yes, Stainless Steel Chequered Plates are suitable for hygienic and sanitary applications due to their corrosion resistance, ease of cleaning, and non-porous surface, making them ideal for food and medical industries.
Stainless Steel Chequered Plates are generally resistant to galvanic corrosion when used in appropriate environments. However, in the presence of dissimilar metals and moisture, galvanic corrosion can occur if proper precautions aren’t taken.
Yes, Stainless Steel Chequered Plates are suitable for cryogenic applications due to their excellent low-temperature strength, durability, and resistance to brittle fracture, making them ideal for extreme environments.
To select the right Stainless Steel Chequered Plate, consider factors such as corrosion resistance, load-bearing capacity, surface finish, thickness, and environmental conditions, ensuring compatibility with your specific application needs.
Akor Stainless’s Stainless Steel Chequered Plates find their way into construction platforms, stair treads, walkways, ramps, truck beds, factory floors, and marine decks. They’re also perfect for architectural cladding, elevator panels, and interior designs where strength and aesthetics go hand in hand. These plates provide a non-slip surface that’s crucial for safety in high-risk areas, while also being easy to clean and maintain, making them suitable for the food processing and pharmaceutical sectors. Their versatility, resistance to corrosion, and polished finish make them a top choice for both industrial and decorative uses.
