Stainless Steel 904L tube fittings comprise 25% chromium, 20% nickel, 4.5% molybdenum, and trace amounts of copper. This high alloy content provides excellent resistance to corrosion, especially in acidic environments, and enhances strength and durability. Properties include high pitting and crevice corrosion resistance, good formability, and resistance to chloride-induced stress corrosion cracking. Advantages of 904L tube fittings include their suitability for harsh environments, exceptional longevity, and minimal maintenance, making them ideal for chemical processing, marine, and petrochemical industries.
| Specifications | : | ASTM S182 / A276 ASME SA 479 |
| Tube Size | : | 6mm to 38mm to 1/4″ to 1 1/2″ |
| Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE, etc. |
| Brass | : | ASTM B16 ASTM B 453 |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | Cu |
| SS 904L | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max | 19 – 23 | 23 – 28 | 4 – 5 | 1 – 2 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 904L | 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.
At Akor Stainless, we are proud to be the largest supplier, manufacturer, and exporter of Stainless Steel 904L Tube Fittings in Abuja, Nigeria. Our state-of-the-art solutions address all your piping needs. With advanced production facilities in the Nigeria, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring that stock is readily available to meet your demands.

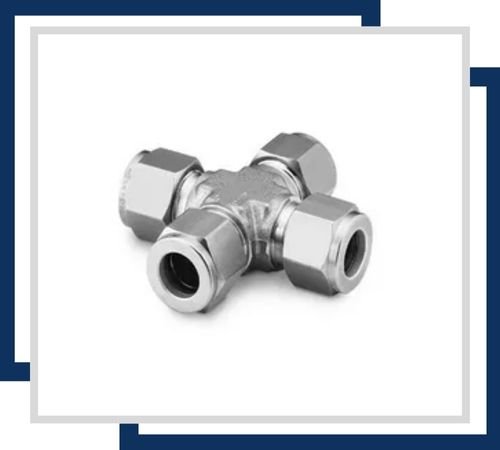

Stainless Steel 904L Union Cross connects four tubes at a right angle. It typically comes in sizes ranging from 1/4″ to 2″. Known for its exceptional corrosion resistance, it is ideal for highly corrosive environments.

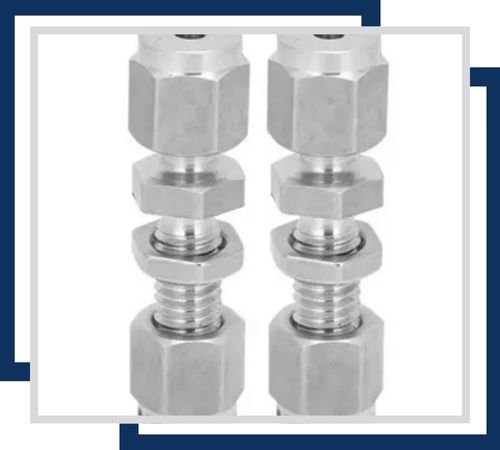

Stainless Steel 904L Reducer Union smoothly transitions two different tube sizes. Available in sizes from 1/4″ to 2″ and designed for high corrosion resistance, it’s perfect for managing flow changes in corrosive settings.

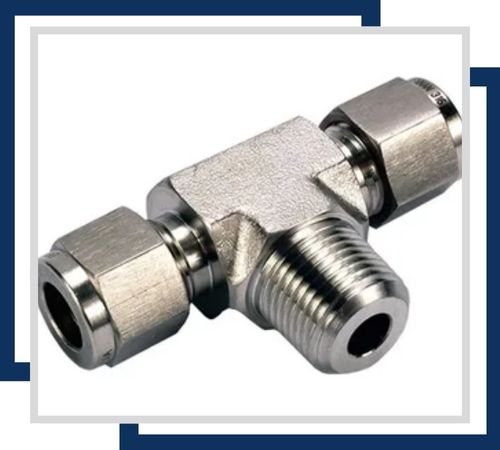

Stainless Steel 904L Male Branch Tee features a male thread on the branch and is used to create a branch connection. It is available in sizes from 1/4″ to 2″ and offers excellent resistance to corrosion, making it suitable for harsh environments.

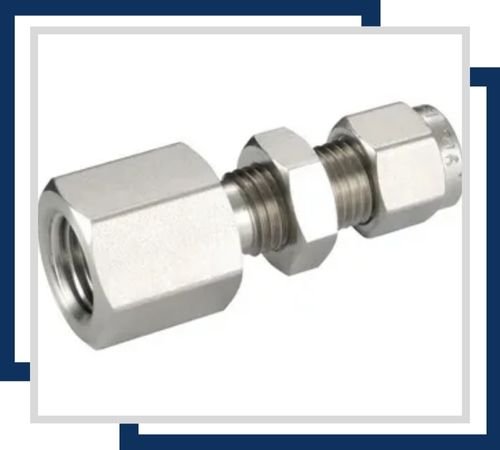

The Stainless Steel 904L Female Connector is designed to join two tubes with female threads. It comes in sizes from 1/4″ to 2″ and is highly corrosion resistant, ideal for chemical processing and marine applications.

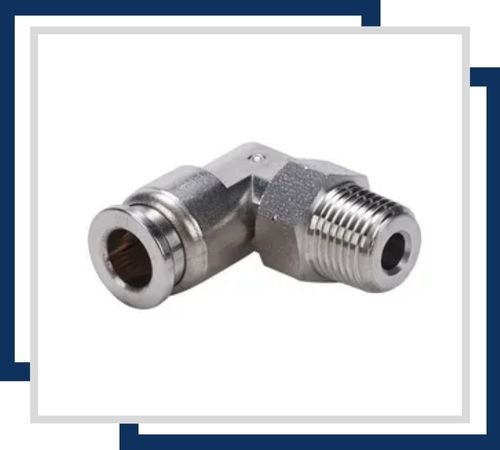

Stainless Steel 904L Male Elbow allows for a 90-degree change in the direction of the tubing. Available in sizes from 1/4″ to 2″, it provides superior corrosion resistance and is suitable for complex piping systems in corrosive environments.

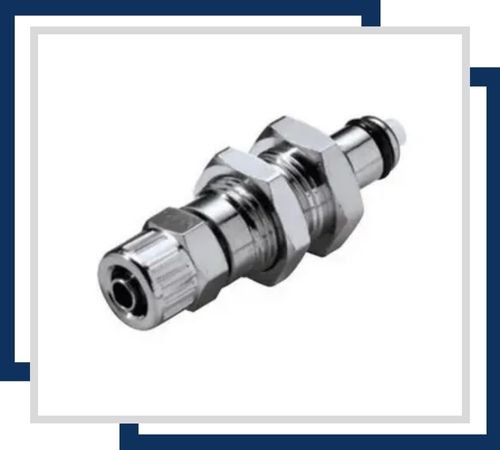

A Stainless Steel 904L Male Connector connects two tubes with male threads. It is available in sizes from 1/4″ to 2″ and offers high resistance to corrosion, making it ideal for use in aggressive chemical environments.
Akor Stainless is a leading supplier and stockist of high-quality Stainless Steel 904L Tube Fittings in Abuja, Nigeria. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
Stainless Steel 904L tube fittings are highly regarded for their exceptional corrosion resistance, including in harsh environments like marine and chemical processing. Their high chromium and nickel content enhances their resistance to acids and chlorides. Commonly used in industries such as oil and gas, petrochemicals, and pharmaceuticals, these fittings ensure reliable performance in applications requiring high durability and resistance to pitting and crevice corrosion. They are ideal for handling aggressive fluids and gases, ensuring longevity and reducing maintenance needs.
