Akor Stainless, a well-respected manufacturer and supplier located in Abuja, Nigeria, is known for delivering high-quality Stainless Steel 420 Sheets and Plates that adhere to international standards. These products are made from top-notch raw materials and cutting-edge manufacturing techniques, ensuring they boast exceptional strength, durability, and resistance to corrosion and wear. With their impressive hardness and smooth, polishable surface, Akor Stainless 420 Sheets and Plates are perfect for precision engineering and various industrial applications. The company places a strong emphasis on quality control and customer satisfaction, providing dependable stainless steel solutions for even the most demanding environments.
Stainless Steel 420 Sheets and Plates mainly consist of chromium (12–14%), carbon (0.15–0.40%), manganese, silicon, and small amounts of nickel and molybdenum. This martensitic stainless steel grade is known for its excellent hardness and decent corrosion resistance, particularly after undergoing heat treatment. It offers a tensile strength of about 700 MPa and a yield strength of roughly 345 MPa, with hardness levels that can surpass 50 HRC when properly tempered. The alloy also showcases good mechanical properties, machinability, and wear resistance, making it ideal for high-stress applications.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 420 | 0.15 max | 1.00 max | 1.00 max | 0.04 max | 0.03 max | min: 12.0 max: 14.0 | – |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) |
|---|---|---|---|---|
| Annealed * | 655 | 345 | 25 | 241 max |
| 399°F (204°C) | 1600 | 1360 | 12 | 444 |
| 600°F (316°C) | 1580 | 1365 | 14 | 444 |
| 800°F (427°C) | 1620 | 1420 | 10 | 461 |
| 1000°F (538°C) | 1305 | 1095 | 15 | 375 |
| 1099°F (593°C) | 1035 | 810 | 18 | 302 |
| 1202°F (650°C) | 895 | 680 | 20 | 262 |
Contact us to get a quick quote for your requirement.

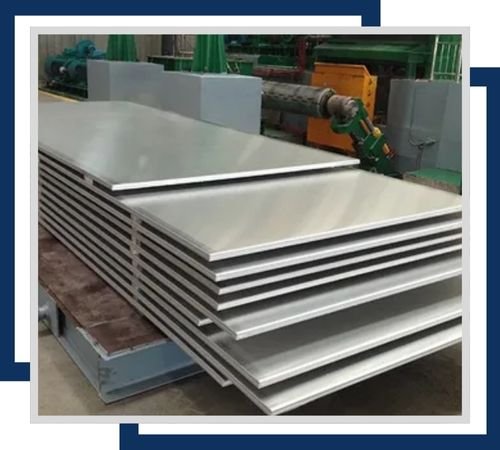

These are stainless steel 420 hot rolled sheets that can offer excellent corrosion resistance and a durability that no other material could. They range from 3mm to 12mm thickness and are most suitable for any application that calls for high strength and good machinability.

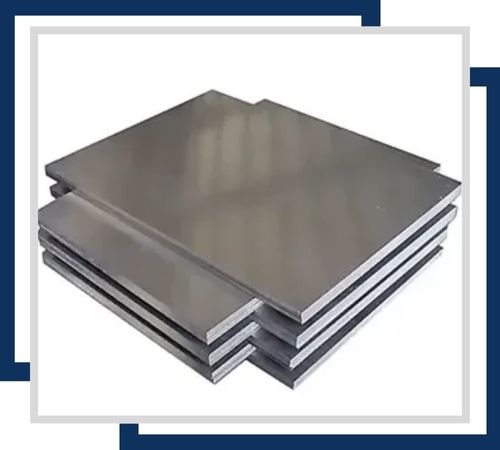

Stainless Steel 420 cold rolled plates offer excellent corrosion resistance and a bright finish. These plates are available in thicknesses ranging from 0.5mm to 6mm and are used in precision applications where dimensional accuracy and fine surface finish are critical.
Stainless Steel 420 chequered plates combine excellent corrosion resistance with a textured surface for slip resistance. They are available in thicknesses from 2mm to 8mm and various patterns, and are widely used in flooring and safety applications.

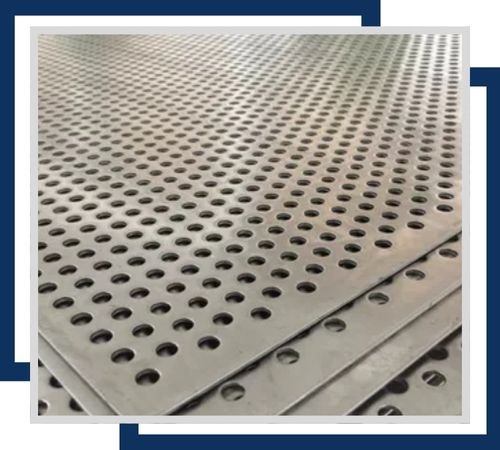

Stainless Steel 420 perforated sheets are corrosion-resistant and have uniform holes for ventilation and aesthetics. They are available in thicknesses from 1mm to 5mm and are used in filtering and architectural applications.

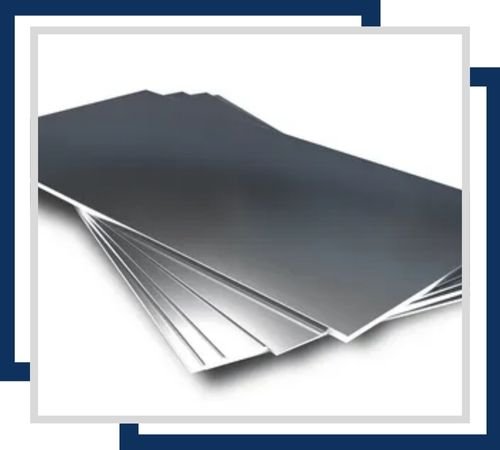

Stainless Steel 420 shim sheets are very corrosion resistant and precise. Generally available in the thickness of 0.1mm to 1mm, these are used for precise spacing and alignment in many engineering and manufacturing applications.

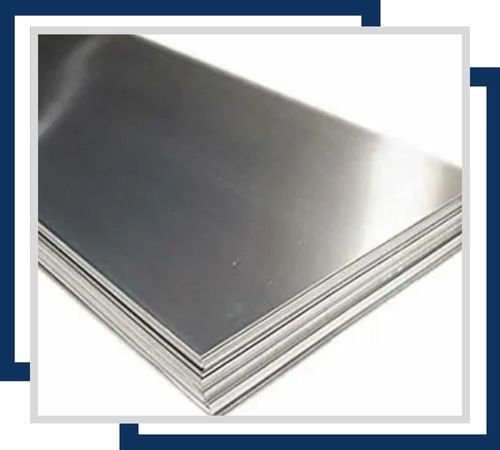

Stainless Steel 420 polished plates have excellent corrosion resistance and a reflective finish. Available in thicknesses ranging from 1mm to 10mm, they are used for decorative and high-visibility applications where aesthetic quality and resistance to oxidation are critical.
Akor Stainless is highly concerned with the customer experience and delivers that with adequate documentation of its premium-quality Stainless Steel 420 Sheets and Plates. We deliver to our clients the necessary documents like a commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. These documents validate the genuineness and superior quality of our products and, therefore, ensure confidence in our valued customers. In addition, we provide our Stainless Steel 420 Sheets and Plates with different test certificates, including MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate, reflecting our customer-first approach and dedication to excellence.
These Stainless Steel 420 Sheets and Plates find extensive use in industries that demand high strength and edge retention. They’re commonly found in the production of surgical instruments, cutlery, pump shafts, valve components, and molds. Additionally, they play a vital role in the aerospace, automotive, and petrochemical sectors for parts that face wear and mild corrosive conditions. Thanks to their ability to achieve a mirror-like finish and outstanding mechanical performance, 420 stainless steel sheets and plates are also favored for decorative uses and precision-engineered tools.
