Akor Stainless is a reputable manufacturer and supplier of top-notch Stainless Steel 348 Sheets and Plates based in Abuja, Nigeria. Renowned for their exceptional durability and precision, our products are designed to meet the rigorous demands of today’s industries. Stainless Steel 348 is a stabilized austenitic stainless steel that provides outstanding resistance to intergranular corrosion and high-temperature oxidation. At Akor Stainless, we take pride in ensuring that each sheet and plate is crafted using cutting-edge technology and high-quality raw materials. Our dedication to quality, precision, and customer satisfaction has established us as a trusted source for stainless steel solutions throughout Nigeria and beyond.
Stainless Steel 348 Sheets and Plates are primarily made up of chromium (17–19%), nickel (9–13%), and columbium (niobium), along with small amounts of manganese, silicon, and carbon. The addition of niobium enhances resistance to carbide precipitation, boosting performance at higher temperatures. Mechanically, this alloy boasts impressive tensile strength, ductility, and toughness, even in harsh conditions. It has a tensile strength of about 550 MPa and a yield strength of around 240 MPa. These characteristics make SS 348 perfect for applications that require exceptional heat resistance and structural integrity.
| Steel grade type | Stainless Steel: |
|---|---|
| Standard | 348 |
| Production specifications | Steel plate,Sheet, Coil,Flat bar,Round bar, Strip steel,wire,All kinds of forgings. |
| Mchining | Turning Milling Grinding Deep hole drilling: length max 9.8 meters. |
Range of work | Round bar steel: 1mm to 2000mm Square-shape steel: 10mm to 1000mm steel Plate and sheet:0.08mm to 800mm Width: 10mm to 1500mm Lenth: We can supply any lenth based on the customer’s requirement. Forging: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes Tubings: OD: φ4-410 mm, with wall thickness ranging from 1-35 mm. |
| Heat treatment | Normalizing,Annealing,Tempering,Quenching,Hardening and tempering,Seasoning,Surface hardening,Carburizing |
| Properties | Conditions | ||
|---|---|---|---|
| T (°C) | Treatment | ||
| Density (×1000 kg/m3) | 7.7-8.03 | 25 | |
| Poisson’s Ratio | 0.27-0.30 | 25 | |
| Elastic Modulus (GPa) | 190-210 | 25 | |
| Tensile Strength (Mpa) | 1158 | 25 | oil quenched, fine grained, tempered at 425°C |
| Yield Strength (Mpa) | 1034 | ||
| Elongation (%) | 15 | ||
| Reduction in Area (%) | 53 | ||
| Hardness (HB) | 335 | 25 | oil quenched, fine grained, tempered at 425°C |
Contact us to get a quick quote for your requirement.

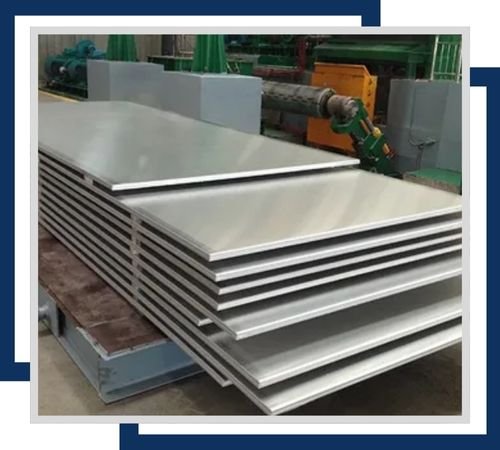

Stainless Steel 348 hot rolled sheet offers an exceptional corrosion-resistant barrier and may find applications for highly elevated temperature work. Hot-rolled stainless Steel 348 Sheet is readily available in gauges from 3 mm up to 12mm and in width up to 2000mm.

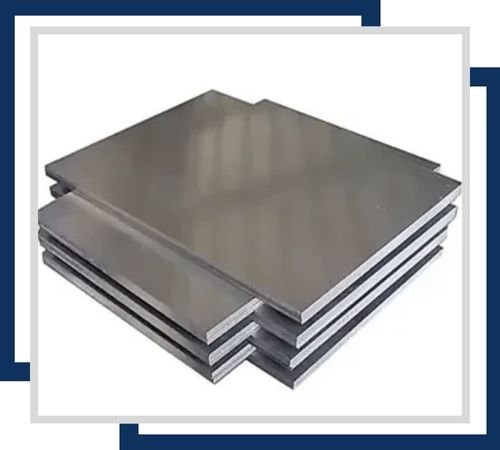

Cold rolled plates of Stainless Steel 348 offer high corrosion resistance with a bright surface finish. It is available in the range of 0.5 mm to 6 mm and up to 1250 mm in width, ideal for any detailed engineering application and aesthetic usage.

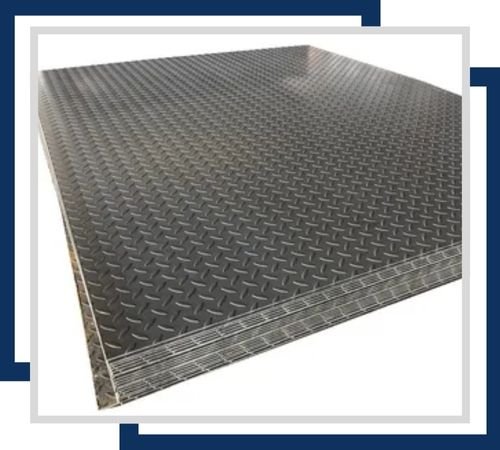

Stainless Steel 348 chequer plates are supplied with excellent resistance to corrosion and an anti-slip finish. With a thickness from 2mm to 10mm and common sizes up to 1500 mm x 1500 mm, they are highly used in floors and walkways.

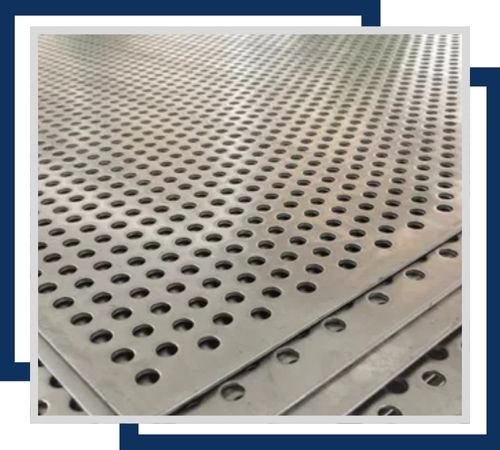

Perforated sheets in Stainless Steel 348 are corrosion-resistant and have a hole pattern for functional and aesthetic purposes. These are usually available in thicknesses ranging from 0.8 mm to 5 mm and in custom hole sizes. They are used for filtration and decorative purposes.

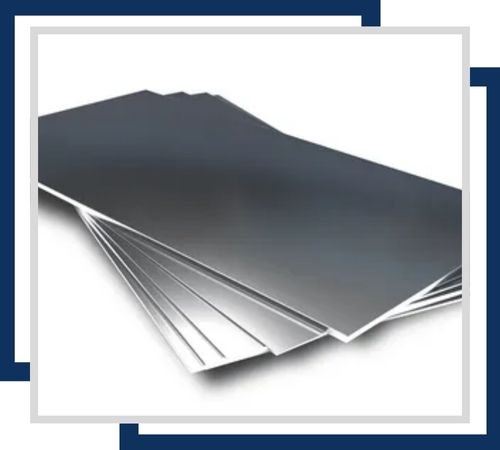

Corrosion resistance is very high on shim sheets made of stainless steel 348 and used to fill accurately the gaps and for leveling purposes. The thickness level ranges from 0.1mm to 2mm, with standard sheet sizes up to 1000mm x 2000mm.

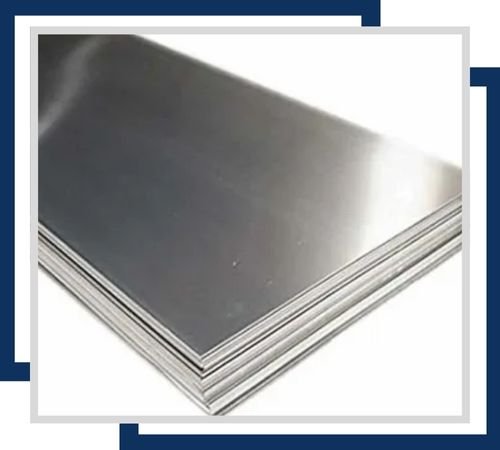

Polished plates of Stainless Steel 348 provide superb corrosion resistance with a high-shine finish. They are generally available in thickness from 1 to 12 mm and can be sized to order, thus making them perfect for decorative as well as high-end architectural applications.
Akor Stainless is committed to providing an excellent customer experience with complete documentation of our superior-quality Stainless Steel 348 Sheets and Plates. We provide all essential documents, including a commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report, to assure product authenticity and gain confidence in our esteemed customers. As if these were not sufficient, all test certificates in regard to Stainless Steel 348 sheets and plates in relation to MTC as per EN 10204/3.1b, PMI test certificate, radiography report as 100 percent, third-party inspection report- all those guarantee the level of satisfaction along with excellence provided.
Stainless Steel 348 Sheets and Plates find extensive use in industries that require high-temperature stability and corrosion resistance. Typical applications include heat exchangers, furnace components, exhaust manifolds, boiler tubes, jet engine parts, and equipment for chemical processing. They are also favored in food processing, pharmaceuticals, and nuclear power plants, where minimizing contamination and corrosion is crucial. The alloy’s remarkable resistance to intergranular corrosion and high-temperature oxidation makes it suitable for both welded and non-welded components. Akor Stainless is proud to offer SS 348 sheets and plates that meet these demanding standards.
