Nestled in the heart of Abuja, Akor Stainless stands as your trusted partner for premium metal solutions. We take pride in supplying and distributing high-grade Stainless Steel 317L sheets and plates, catering to the robust demands of Nigeria’s diverse industrial landscape. Our commitment is to provide not just products, but reliable resources that form the backbone of your most critical projects, ensuring durability and performance you can count on.
Stainless Steel 317L is an austenitic chromium-nickel steel containing molybdenum, which gives it a distinct advantage. Its composition includes added molybdenum for improved corrosion resistance, particularly against chloride pitting and crevice corrosion. Mechanically, this grade offers good toughness and excellent strength, even in high-temperature settings, making it a robust choice for challenging environments. It’s a material known for its reliability under pressure.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.

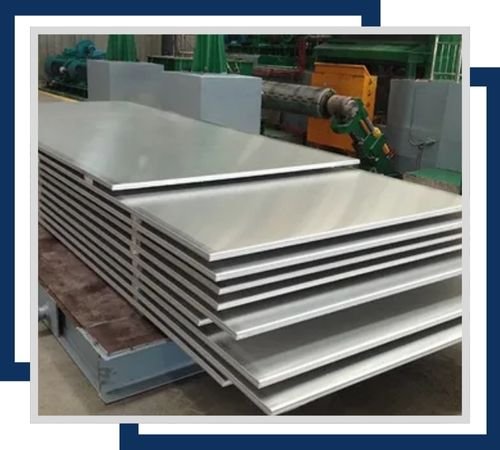

High resistance to corrosion by chlorides and acids available as sheets and plates from a thickness of 3mm to 100mm in width to 2 meters. The hot-rolled product allows heavy usage because it produces a tough and durable finish.

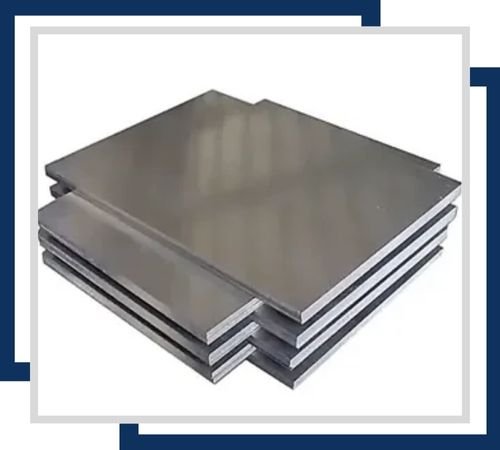

With high corrosion resistance, the cold rolling provides cold rolled sheets and plates that range in thickness from 0.3mm to 6mm, with widths reaching up to 1.5 meters. In the case of cold rolling, it leaves the surface very smooth and precise for aesthetic and high-precision uses.

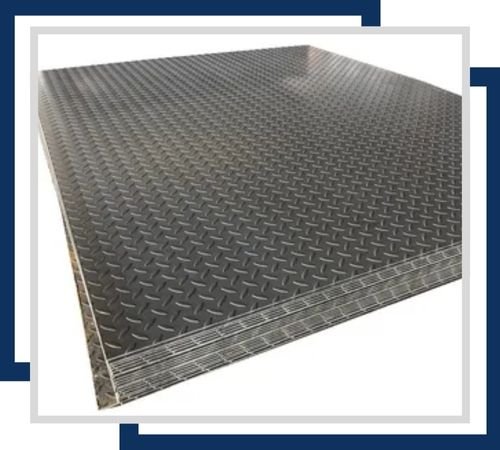

They have been designed with the patterned surface for superior friction and slip resistance. Chequered sheets and plates provide superior resistance to corrosion. These products are available from 1.5mm up to 6mm thickness in custom sizes as per application requirements.

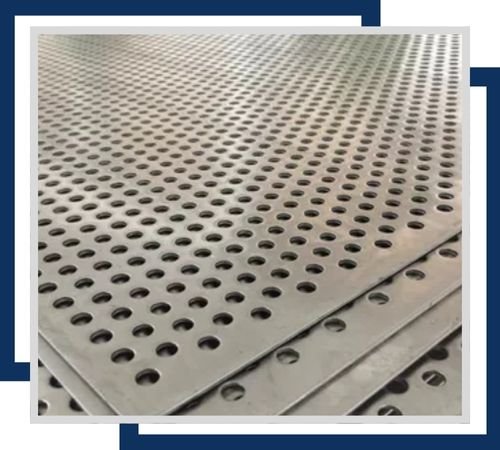

These sheets and plates are superior in corrosion resistance and perforated holes for ventilation, filtering, and aesthetic purposes. Common sizes range from 0.5mm to 6mm thick, and custom hole patterns and diameter sizes are offered according to several industrial and architectural needs.

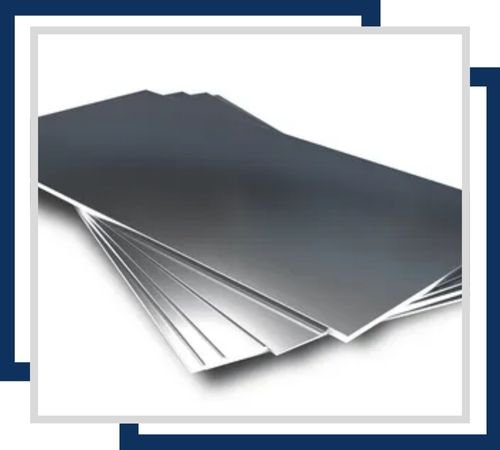

Shim sheets and plates are highly resistant to corrosion and are used for precise spacing and alignment. They are thin gauges usually from 0.1mm to 3mm thick, but may be customized in dimensions according to the particular mechanical and industrial application.

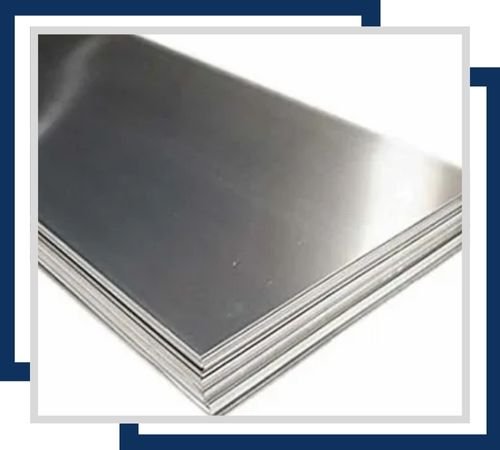

They come with great corrosion resistance as well as the option of polishing to a mirror finish for aesthetic use, suitable in decorative or high-visibility applications. The sheets and plates range in thickness from 0.5mm to 12mm.
Akor Stainless’s **Stainless Steel 317L Sheets and Plates** find their way into various industries, including chemical processing, petrochemical, pulp and paper, pharmaceuticals, marine, and food processing. These sheets and plates are perfect for constructing tanks, heat exchangers, pressure vessels, evaporators, and other process equipment that face harsh chemicals or high temperatures. Their exceptional resistance to pitting, crevice corrosion, and oxidation ensures they perform reliably over the long haul. With a strong commitment to quality, precision, and customer satisfaction, Akor Stainless has earned its reputation as a trusted provider of Stainless Steel 317L Sheets and Plates in Abuja and across Nigeria.
You’ll often find 317L sheets and plates hard at work in demanding sectors like chemical processing, where it handles acidic compounds, and in the oil and gas industry for pipelines and refinery equipment. Its resistance makes it ideal for power generation facilities, wastewater treatment plants, and the construction of industrial machinery. Essentially, wherever extreme conditions are a daily reality, this material provides the resilience needed for long-term success and safety.
