Akor Stainless stands out as a top-notch manufacturer and supplier of Stainless Steel 316Ti Tubing, proudly based in Abuja, Nigeria. We’re known for delivering high-quality stainless steel solutions that align with global standards. Our Stainless Steel 316Ti Tubing is crafted for exceptional strength, outstanding corrosion resistance, and remarkable durability, even in the toughest environments. By leveraging cutting-edge manufacturing technology and rigorous quality control, Akor Stainless guarantees precision and reliability in every single product. We cater to various industries, including petrochemical, marine, pharmaceutical, and construction, providing tubing solutions that promise long-lasting performance and resilience against extreme temperatures and corrosive conditions.
Stainless Steel 316Ti Tubing is primarily made up of iron, with 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a touch of titanium for stabilization. This titanium addition significantly boosts resistance to intergranular corrosion, especially after welding and exposure to high temperatures. The tubing boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, along with excellent elongation and toughness. Its remarkable blend of corrosion resistance, heat stability, and mechanical strength makes Stainless Steel 316Ti Tubing a perfect fit for demanding industrial applications.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A269 / ASTM SA269
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 316TI |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316TI |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 35 |
| Hardness | |
| Rockwell B (HR B) max | 75 |
| Brinell (HB) max | 205 |
Contact us to get a quick quote for your requirement.
This steel 316Ti tubing from Akor Stainless is thoroughly inspected for pitting and intergranular corrosion resistance, tensile strength, and hardness, apart from hydrostatic pressure testing for premium quality, and is accredited and approved to international specifications like ASTM, ASME, and ISO against each material test report.

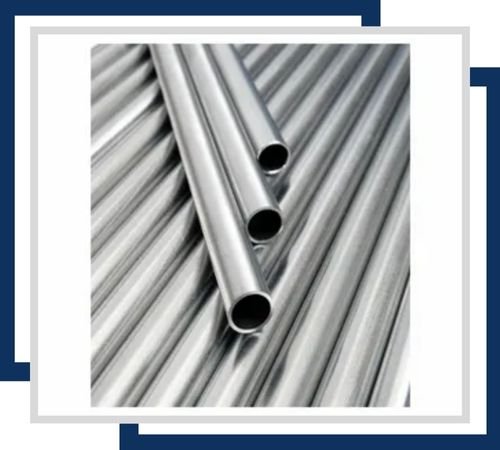

Stainless Steel 316Ti Seamless Tubing is known for its superior corrosion resistance, especially in high-temperature environments. Typically available in sizes ranging from 1/8” to 12” OD, it offers excellent mechanical properties and smooth surface finishes. Ideal for applications requiring high precision and reliability.

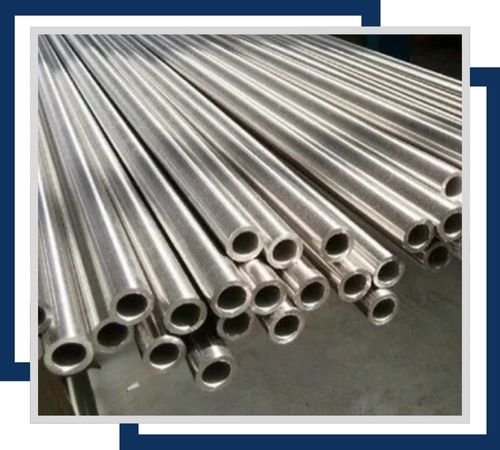

Stainless Steel 316Ti Welded Tubing combines excellent corrosion resistance with durability. Available in sizes from 1/8” to 24” OD, this tubing is cost-effective and versatile for various applications. It is particularly suitable for industries where high resistance to oxidizing acids is essential.

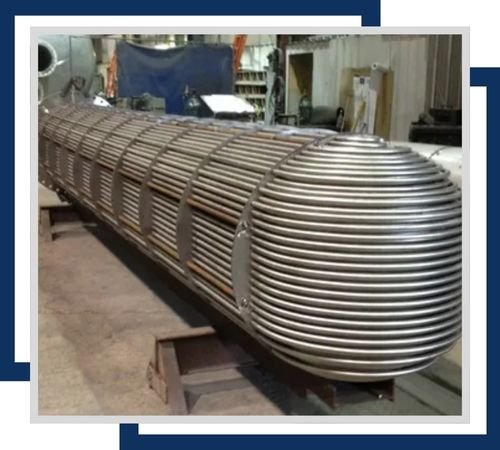

Stainless Steel 316Ti Heat Exchanger Tubes are designed for optimal thermal conductivity and corrosion resistance. These tubes come in sizes ranging from 1/4” to 2” OD, making them perfect for heat exchangers in chemical processing and power generation industries. They ensure efficient heat transfer and long service life.

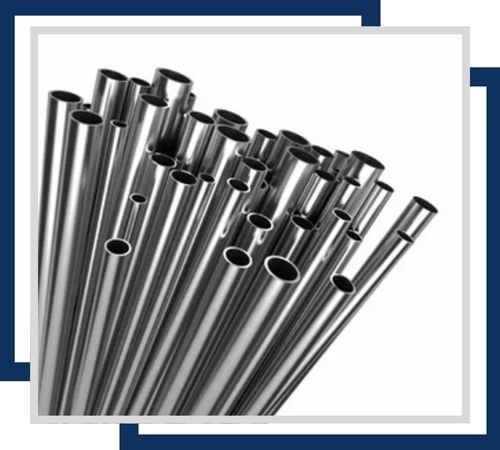

Stainless Steel 316Ti Instrumentation Tubing offers superior corrosion resistance and precision. Available in sizes from 1/16” to 1” OD, it is ideal for high-pressure and high-temperature applications in instrumentation and control systems. Ensures reliable performance and accuracy in critical applications.

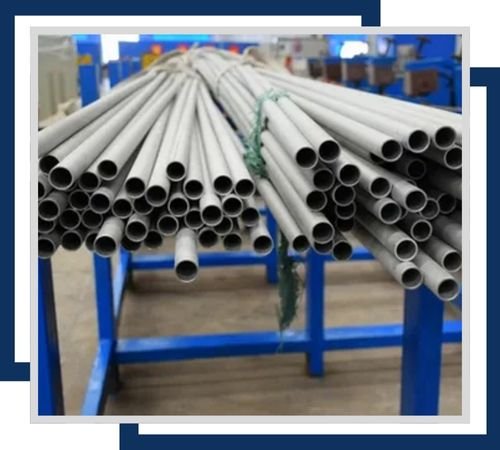

Stainless Steel 316Ti Boiler Tubes are engineered for high temperature and pressure conditions. Sizes range from 1/2” to 5” OD, providing excellent resistance to oxidation and corrosion. These tubes are essential for maintaining efficiency and longevity in boiler systems

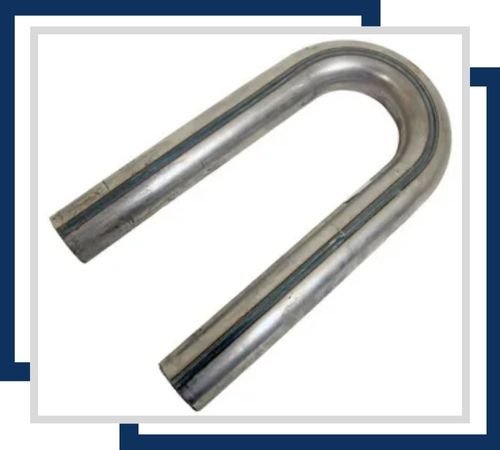

Stainless Steel 316Ti U-Tubes are designed for heat exchangers and boiler systems where space-saving is crucial. Available in sizes from 1/4” to 1” OD, they offer exceptional corrosion resistance and flexibility in design. Ideal for applications requiring compact and efficient thermal transfer solutions
Stainless Steel 316Ti Condenser Tubes provide excellent corrosion resistance and thermal conductivity. Sizes range from 1/4” to 2” OD, making them suitable for condensers in power plants and HVAC systems. Ensures efficient condensation and long-term performance

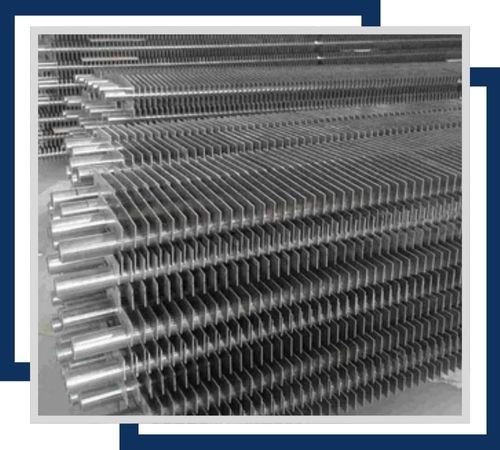

Stainless Steel 316Ti Fin Tubes enhance heat transfer efficiency while maintaining high corrosion resistance. Available in sizes from 1/4” to 1-1/2” OD, these tubes are used in heat exchangers, condensers, and evaporators. The finned design maximizes surface area for optimal thermal performance.
Stainless Steel 316Ti Tubing is widely utilized in industries that demand exceptional resistance to heat and corrosion. It’s particularly well-suited for chemical processing plants, oil and gas refineries, power generation systems, and marine environments. The tubing excels in applications that involve high temperatures and acidic or chloride-rich conditions. Additionally, it finds its place in heat exchangers, condensers, and pharmaceutical equipment, where both cleanliness and strength are crucial. In architectural and construction projects, Stainless Steel 316Ti Tubing not only provides durability but also adds an aesthetic touch, making it a popular choice.
