Akor Stainless proudly stands as a leading manufacturer and supplier right here in Abuja, Nigeria, providing essential industrial materials to the region. We specialize in delivering high-quality Stainless Steel 316H tubing, a product designed for the most demanding environments. Our commitment is to ensure that local industries have reliable access to this superior-grade material, supporting projects that require exceptional strength and corrosion resistance. We understand the unique needs of the Nigerian market and are dedicated to supplying tubing solutions that build a stronger, more resilient industrial foundation for our community.
The strength of 316H tubing comes from its specific composition, which includes chromium, nickel, and a crucial addition of molybdenum for enhanced corrosion fighting. The ‘H’ designation indicates a higher carbon content, which is key for maintaining its strength and durability when exposed to high temperatures. This formulation gives the tubing excellent mechanical properties, including remarkable tensile strength and superior creep resistance. Essentially, this means it can withstand significant pressure and intense heat over long periods without deforming or failing, making it incredibly reliable.
Specifications : ASTM A213, A312, A269, A358 / ASME SA213, SA312, SA269, SA358
Outside Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24″ NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Thickness Range : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type : Seamless / ERW / Welded / Fabricated / CDW
Form : Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Outside Finish : 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Tubes, Finish as per customer Requirements
Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures high-quality Stainless Steel 316H Tubing through hydrostatic, ultrasonic, PMI (Positive Material Identification), and intergranular corrosion tests. Every batch is inspected in detail to meet the standards of ASTM and ASME. ISO, EN, and NACE certified, all products are delivered with material test reports and compliance certificates.

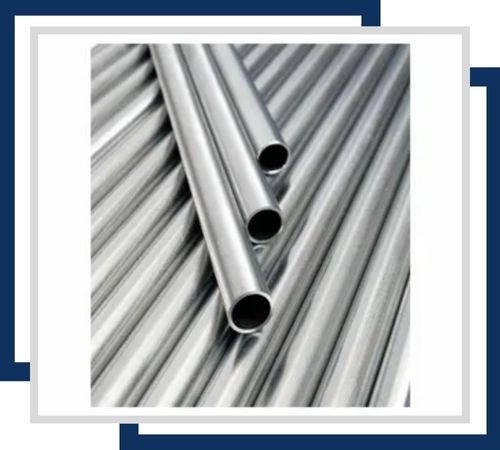

Stainless Steel 316H Seamless Tubing is available in sizes ranging from 1/8″ to 24″ in diameter. Known for its superior corrosion resistance, it is ideal for high-temperature applications. The absence of welds ensures a smooth finish and higher strength.

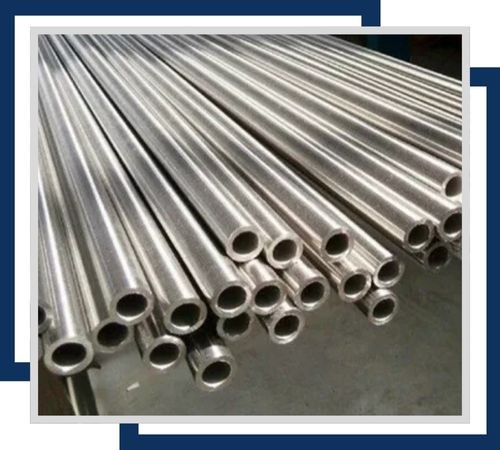

Stainless Steel 316H Welded Tubing is available in sizes from 1/8″ to 72″ in diameter. It offers excellent corrosion resistance and is suitable for a variety of applications, including chemical and petrochemical industries. The welding process allows for cost-effective production of longer lengths.

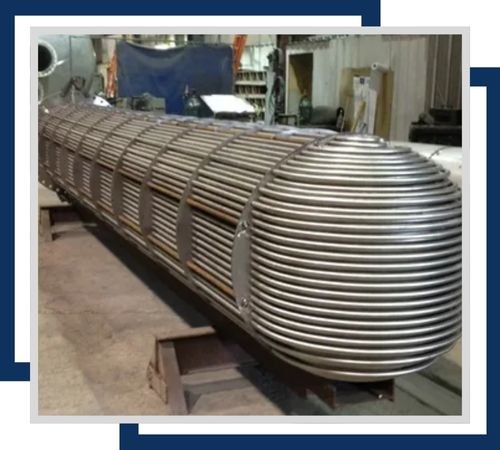

Stainless Steel 316H Heat Exchanger Tubes come in sizes from 1/2″ to 12″ in diameter. They are designed for optimal heat transfer and corrosion resistance, making them ideal for high-temperature environments. These tubes are essential components in heating and cooling systems.

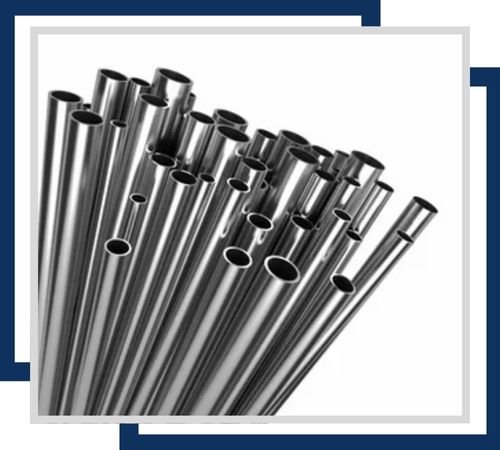

Stainless Steel 316H Instrumentation Tubing is available in sizes from 1/8″ to 1″ in diameter. It offers high corrosion resistance and precise dimensional tolerances, making it perfect for use in critical instrumentation and control systems. These tubes ensure reliable performance under high pressure.

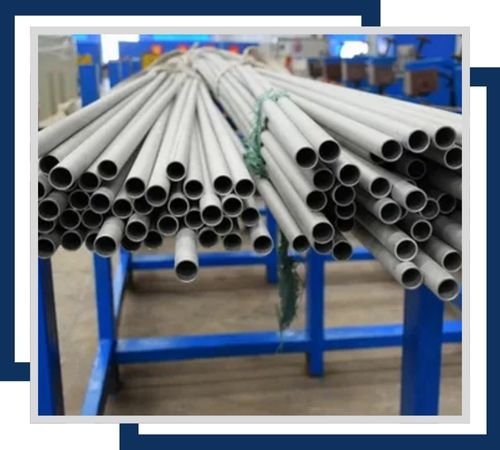

Stainless Steel 316H Boiler Tubes range in size from 1/2″ to 5″ in diameter. They provide excellent corrosion resistance and can withstand high temperatures and pressures. These tubes are essential in the construction of boilers and pressure vessels.

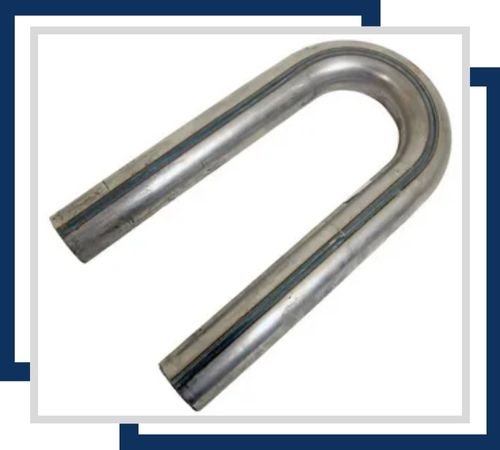

Stainless Steel 316H U-Tubes are available in sizes from 1/2″ to 1-1/2″ in diameter. They are specifically designed for heat exchanger applications where space is limited, offering superior corrosion resistance. The U-shape allows for efficient heat transfer in compact spaces.

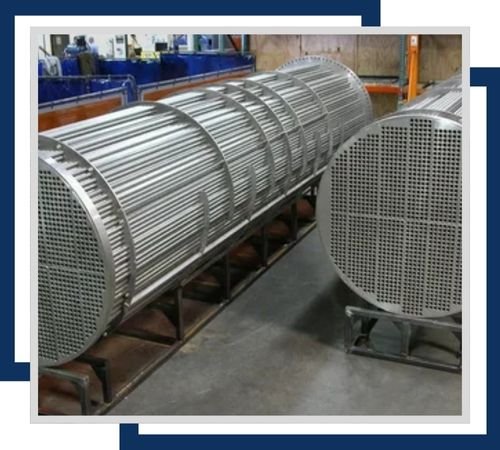

Stainless Steel 316H Condenser Tubes come in sizes from 1/4″ to 2″ in diameter. They provide excellent corrosion resistance and are used in condensers and evaporators. These tubes are critical for effective heat exchange in various industrial processes.
Stainless Steel 316H tubing is truly a workhorse material, finding its place in some of the most critical applications. It is indispensable in the power generation sector, particularly in fossil fuel and nuclear power plants, where it is used for superheaters and heat exchangers that operate under extreme heat and pressure. The chemical processing industry also relies on it heavily for piping systems that handle corrosive substances. Furthermore, its durability makes it an excellent choice for high-temperature exhaust systems and various industrial furnace components, proving its versatility and robustness across different demanding fields.
