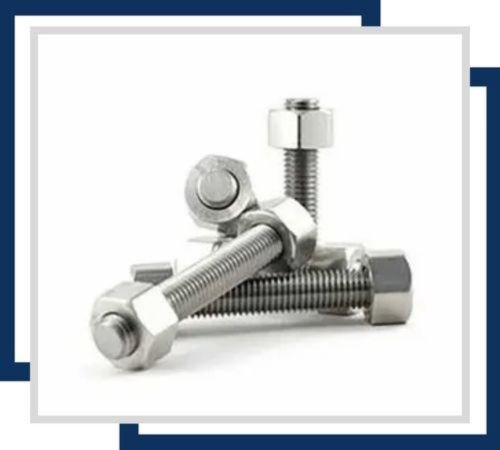

Akor Stainless stands out as a top-notch manufacturer and supplier of Stainless Steel 316H Stud Bolts right here in Abuja, Nigeria. We’re known for providing reliable and high-performance fastening solutions that are crucial for various industrial applications. Our Stainless Steel 316H Stud Bolts are crafted from premium materials and utilize advanced fabrication techniques, ensuring they boast exceptional durability, impressive strength, and the ability to withstand tough working conditions. Built to thrive in high-temperature and corrosive environments, these stud bolts promise a long service life and consistent performance. At Akor Stainless, we’re dedicated to delivering top-quality products, prompt delivery, and outstanding customer support to clients across diverse sectors, including petrochemical, power generation, construction, and marine industries.
When it comes to composition, Stainless Steel 316H Stud Bolts are primarily made up of chromium, nickel, and molybdenum, with a higher carbon content that boosts their strength at elevated temperatures. They shine in terms of corrosion resistance, especially in environments rich in chlorides and acids. On the mechanical side, these stud bolts offer high tensile and yield strength, solid hardness, and dependable creep resistance when faced with thermal stress. Their sturdy design guarantees stability and longevity, making them perfect for applications that involve high heat and constant exposure to corrosive substances.
| Fasteners Material Specification | ASTM A194, ASME SA193, UNS S31609 Bolts |
|---|---|
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Fasteners/ Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| SS 316h Fasteners Standard: | ANSI – American National Standards Institute
|
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| SCOPE OF MANUFACTURE |
|
| Fasteners In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – |
Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.
Stainless Steel 316H lag stud bolts offer high strength and superior corrosion resistance, ideal for high-temperature and harsh environments, ensuring durability and reliability in industrial, chemical, and marine applications.

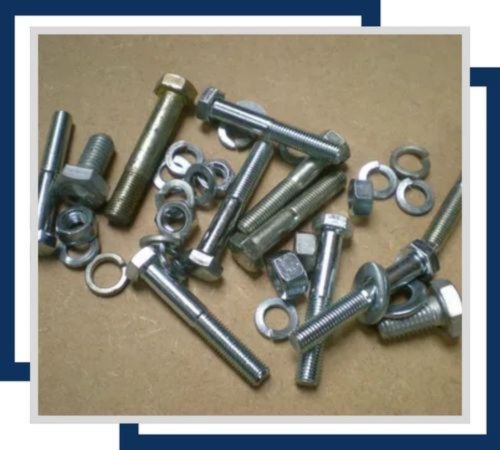

Stainless Steel 316H stud anchor bolts provide high strength and exceptional corrosion resistance, ideal for high-temperature and harsh environments, ensuring secure anchoring in industrial, chemical, and marine applications.

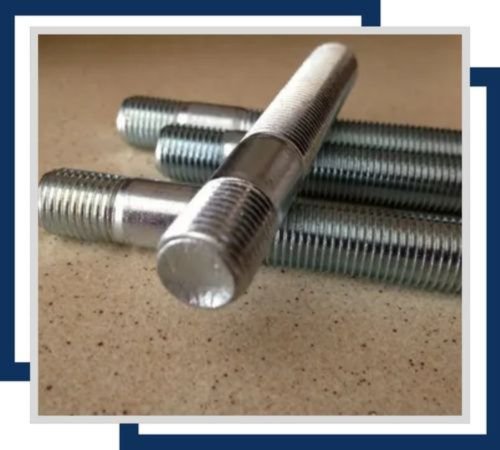

Stainless Steel 316H exhaust stud bolts offer high strength and corrosion resistance, ideal for high-temperature exhaust systems, ensuring durability and reliability in automotive, industrial, and marine applications.
We provide a wide range of certifications by supplying you with only the highest quality standards through our Stainless Steel 316H Stud Bolts. What’s included in our package is commercial invoices, packaging lists, fumigation certificates, heat treatment charts, quality assurance plans, and approved laboratory test reports. We also give you different types of test certificates specifically for your Stainless Steel 316H Stud Bolts. We assure 100 percent client satisfaction with confidence in products by providing them with the proper certifications. It includes MTC as per EN 10204/3.1b, PMI Test Certificate, and 100 percent radiography test report and third-party inspection certificates.
You’ll find Stainless Steel 316H Stud Bolts widely used in industries that demand fastening solutions capable of withstanding extreme temperatures and corrosive conditions. They’re commonly found in petrochemical and refinery equipment, boilers, heat exchangers, and pressure vessels where thermal stability is a must. In power plants, these stud bolts secure high-temperature piping and turbine components. They’re also essential in marine and offshore settings, where structures are regularly exposed to seawater and salty air. Beyond that, they play a vital role in chemical processing plants, heavy machinery assembly, construction frameworks, pharmaceutical equipment, and gas processing facilities, ensuring robust and reliable performance across the board.
