Strategically located in the heart of Nigeria’s capital, Akor Stainless stands as a trusted partner for industrial and construction projects across Abuja and beyond. We specialize in providing robust, high-performance materials engineered for demanding environments, with our Stainless Steel 310H Forged Fittings representing a cornerstone of our premium offerings. These components are designed to deliver unmatched reliability, ensuring the integrity and longevity of critical systems for our clients who cannot afford compromise.
The exceptional strength of Stainless Steel 310H stems from its carefully balanced composition, which is rich in chromium and nickel, providing a solid defense against oxidation. This alloy is further enhanced with a higher carbon content, giving it superior creep resistance, which means it maintains its structural integrity under intense, sustained heat. This combination results in fittings that are not only incredibly durable but also specifically engineered to perform under the extreme pressures and temperatures encountered in high-heat industrial processes.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 310H lattice fittings through stringent testing and certification programs. Extensive testing of each component is carried out, including dimensional testing, mechanical testing and corrosion resistance evaluation. Certifications such as Mill Test Reports (MTR) and ISO compliance ensure the reliability and performance of each fitting.
Corrosion-resistant and designed for high-temperature applications, these fittings are ideal for joining pipes. Sizes typically range from 1/4 inch to 4 inches. Dimensions vary based on pipe size, with standard schedules available.
Offering excellent corrosion resistance, these fittings are used where welding is impractical. Common sizes range from 1/8 inch to 2 inches. They are available in various threads per inch, adhering to ANSI standards.

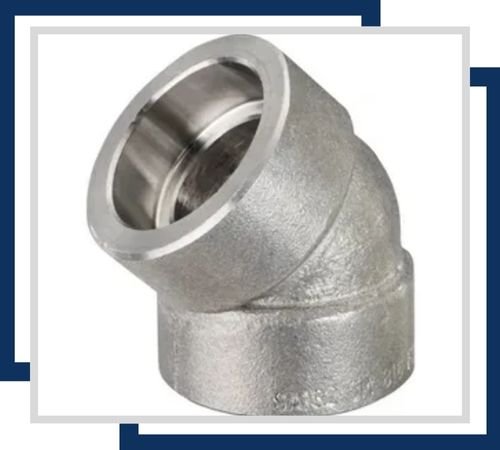

This elbow provides high resistance to oxidation and corrosion at elevated temperatures. Available in sizes from 1/2 inch to 4 inches, it helps in redirecting flow at a 45-degree angle. Dimensions conform to ANSI/ASME standards.

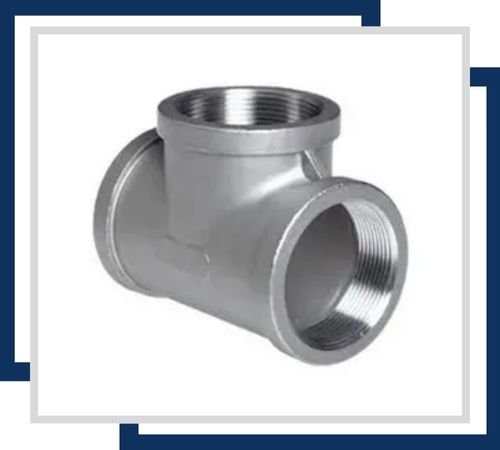

Corrosion-resistant and durable, the threaded tee connects three pipes. Sizes generally range from 1/4 inch to 4 inches, with dimensions following standard pipe thread specifications for ease of connection.

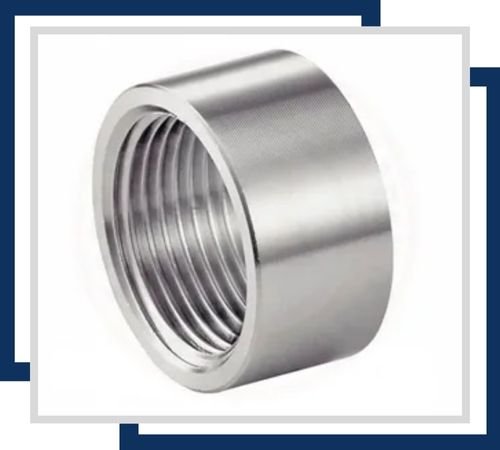

Offering superior resistance to high temperatures and corrosion, this coupling is used for pipe connections. Sizes typically range from 1/4 inch to 2 inches. It features internal threads that match standard pipe sizes.

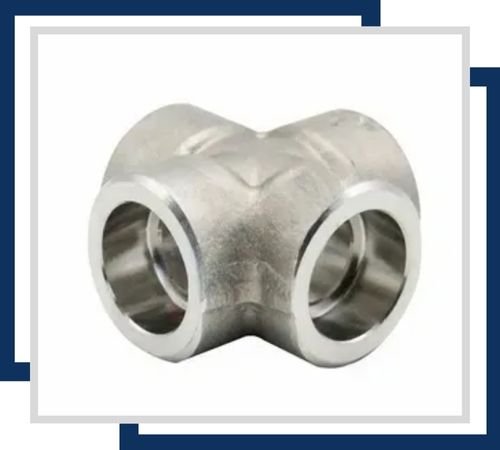

With excellent corrosion resistance, the socket weld cross allows for the connection of four pipes at a single junction. Common sizes range from 1/2 inch to 2 inches, with dimensions based on standard pipe specifications.
You will typically find these robust fittings hard at work in the most challenging settings, such as within the high-temperature tubing systems of power generation boilers or the intricate piping of large-scale industrial furnaces. Their ability to withstand repeated thermal cycling makes them indispensable in petrochemical refining and heat treatment applications. Essentially, wherever extreme heat and corrosion are primary concerns, Stainless Steel 310H Forged Fittings provide the necessary resilience to ensure system safety, operational continuity, and long-term cost-effectiveness for our clients.
