Welcome to Akor Stainless, your trusted partner for premium stainless steel solutions right here in Abuja, Nigeria. We specialize in supplying and manufacturing high-performance components like Stainless Steel 309H Flanges, designed to meet the rigorous demands of various industries. Our commitment is to provide not just a product, but a reliable solution backed by local expertise and a dedication to quality that ensures your projects are built to last and perform flawlessly under challenging conditions.
The strength of our 309H Flanges comes from a carefully balanced composition, rich in chromium and nickel for outstanding resistance to oxidation and corrosion. This grade is further enhanced with a higher carbon content, which gives it superior mechanical properties, including excellent strength and creep resistance at elevated temperatures. This combination makes it uniquely capable of maintaining its integrity and performance in high-heat environments where other materials might fail.
| Specifications | ASTM A240 / ASME SA240 |
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| ASTM A182 GRADE | C | Mn | P | S | Si | Ni | Cr | Mo | Nb | Ti | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F304(1) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-11.0 | 18.0-20.0 | ||||
| F304H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-11.0 | 18.0-20.0 | ||||
| F304L(1) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-13.0 | 18.0-20.0 | ||||
| F304N(2) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-10.5 | 18.0-20.0 | ||||
| F304LN(2) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-10.5 | 18.0-20.0 | ||||
| F309H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 12.0-15.0 | 22.0-24.0 | ||||
| F310 | 0.25 | 2.0 | 0.045 | 0.030 | 1.0 | 19.0-22.0 | 24.0-26.0 | ||||
| F310H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 19.0-22.0 | 24.0-26.0 | ||||
| F310MoLN | 0.030 | 2.0 | 0.030 | 0.015 | 0.40 | 21.0-23.0 | 24.0-26.0 | 2.0-3.0 | N 0.10-0.16 | ||
| F316 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316L(1) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316N(2) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316LN(2) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316Ti | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | (3) | N 0.10 max | |
| F317 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |||
| F317L | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |||
| F321 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-12.0 | 17.0-19.0 | (4) | |||
| F321H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-12.0 | 17.0-19.0 | (5) | |||
| F347 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (6) | |||
| F347H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (7) | |||
| F348 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (6) | Co 0.20 Ta 0.10 | ||
| F348H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (7) | Co 0.20 Ta 0.10 |
| ASTM A182 Grade | Minimum Tensile Strength in MPa | Minimum Yield point in Mpa | Minimum Elongation in % | Minimum Reduction of in min, % |
| Stainless Steel Flanges | 515 | 205 | 30 | 50 |
Contact us to get a quick quote for your requirement.
We provides Stainless Steel 309H Flanges- Akor Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Akor Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

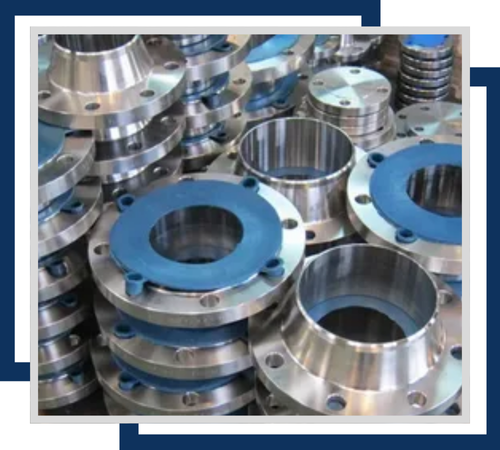

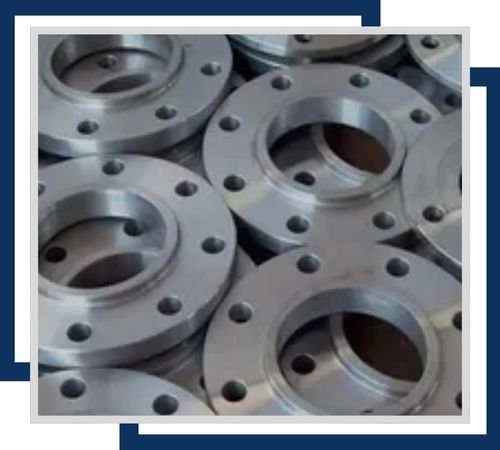

The SS 1.4833 socket weld flange, known for its excellent high-temperature and corrosion resistance, provides a secure, durable connection in critical applications, ensuring performance and reliability in harsh industrial environments.

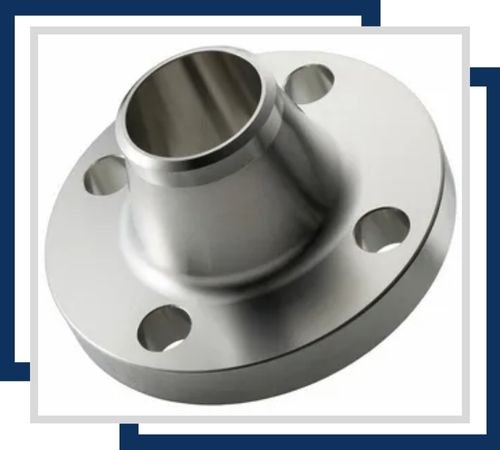

The ASTM A182 F309 ring-type joint flange offers exceptional high-temperature strength and corrosion resistance. It ensures reliable, leak-proof connections in demanding environments, making it ideal for critical industrial applications.

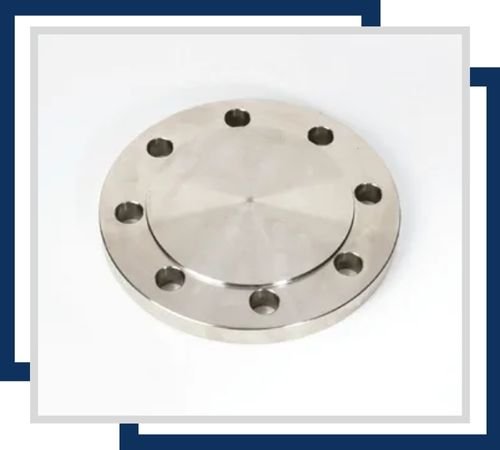

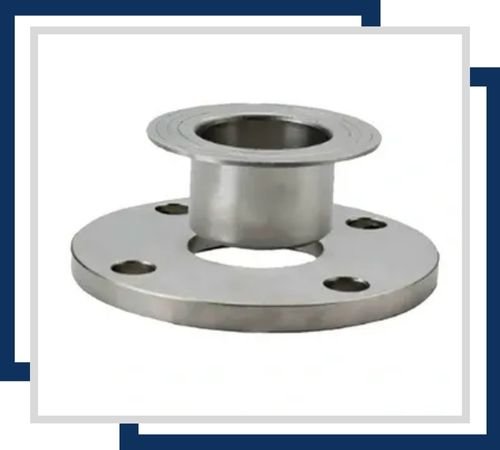

UNS S30900 spectacle blind flanges deliver superior high-temperature strength and corrosion resistance. Ideal for pipeline isolation and maintenance, these flanges ensure robust, reliable performance in demanding industrial settings.
You’ll find our Stainless Steel 309H Flanges hard at work in some of the most demanding settings. They are essential in high-temperature industrial furnaces, heat treatment equipment, and the critical piping systems of power generation plants. Their reliability also makes them a preferred choice for the petrochemical and refining industries, where they securely connect pipes and equipment that must withstand intense heat and corrosive atmospheres, ensuring operational safety and efficiency day in and day out.
