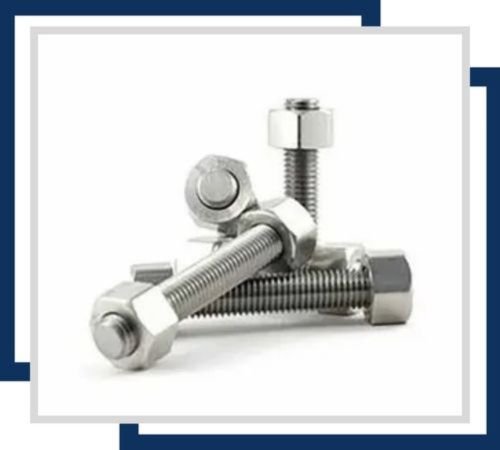

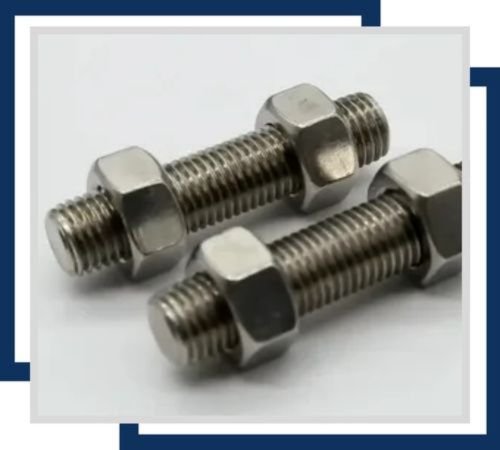

Akor Stainless stands as a trusted manufacturer and supplier right here in Abuja, Nigeria, providing industry professionals with reliable fastening solutions. We specialize in the production and supply of Stainless Steel 304L Stud Bolts, engineered to meet the demanding needs of various sectors. Our commitment is to deliver not just products, but a promise of durability and corrosion resistance, ensuring your projects are built on a foundation of quality and local expertise you can count on.
The composition of our 304L Stud Bolts includes a low carbon content, which is key to their performance. This grade is an austenitic stainless steel enhanced with chromium and nickel, giving it excellent mechanical properties. These bolts offer a good balance of strength and ductility, capable of withstanding significant stress and strain. Their inherent toughness makes them suitable for a wide range of temperatures and pressures, providing a dependable hold in challenging environments.
| Specification | ASTM A 193/ASME SA 193 |
| Standard | all International Standards and ASTM, DIN, BS |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 550 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

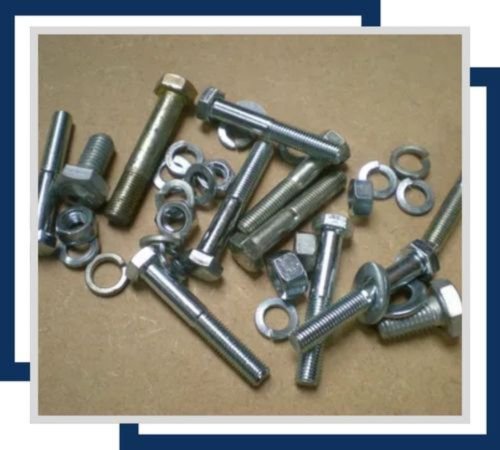

Stainless Steel DIN 1.4301 stud bolts offer exceptional strength and corrosion resistance. Designed for high-performance applications, they ensure durable and secure connections with precise threading and high-quality stainless steel.

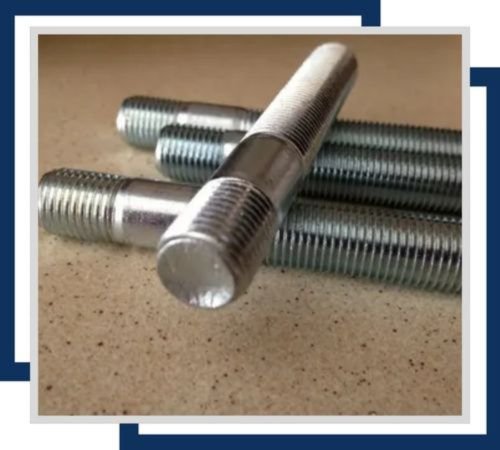

Stainless Steel UNS S30403 stud bolts provide outstanding durability and resistance to corrosion. Perfect for demanding applications, they offer secure, reliable connections with high-strength performance and precision threading.

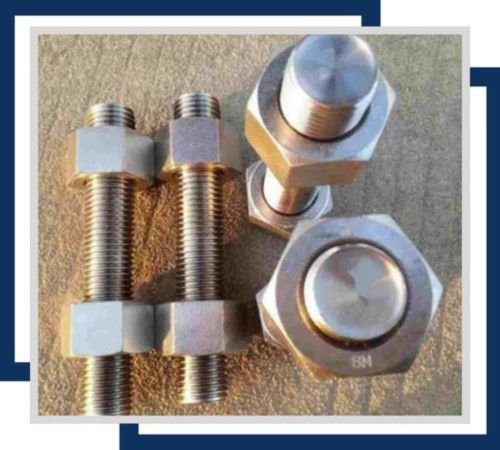

Stainless Steel 304L flush head stud bolts combine durability and sleek design, offering excellent corrosion resistance and strength. Their flush head allows for a clean, streamlined installation in tight spaces.
We assure the transparency of our Stainless Steel 304L Stud Bolts with the high quality assurance. All the orders are supplied along with relevant documents like a commercial invoice, packing list, fumigation certificate, heat treatment chart, and NABL-approved lab test report. We offer Material Test Certificates according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates. Detailed documentation is maintained in order to meet the satisfaction level of clients to the highest level.
The versatility of Stainless Steel 304L Stud Bolts makes them indispensable across many fields. You will commonly find them creating secure connections in the construction industry, as well as in chemical and food processing plants where hygiene and corrosion resistance are critical. They are equally vital in water treatment facilities and for assembling various machinery. Essentially, wherever there is a need for a strong, rust-resistant fastener that can endure exposure to harsh elements, these stud bolts provide a proven and reliable solution.
