For businesses and builders in Abuja and across Nigeria seeking reliable and versatile materials, Akor Stainless stands as your trusted partner. We specialize in supplying high-quality Stainless Steel 301 tubing, providing a durable and cost-effective solution for a wide array of demanding projects. Our commitment is to deliver not just a product, but the strength and resilience your applications require, backed by our local expertise and dependable service right here in the heart of the region.
The strength of Stainless Steel 301 tubing comes from its specific composition, primarily chromium and nickel, which gives it a remarkable ability to work-harden rapidly. This means it becomes significantly stronger and harder when it’s formed or fabricated. While it offers good corrosion resistance in everyday environments, its true standout feature is an excellent balance of high strength and good ductility, making it exceptionally tough and able to withstand significant stress and impact.
Tubing Specification : ASTM A312, A358 / ASME SA312, SA358
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock
Thickness Range : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Outside Finish : 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
| Grade | C | Ma | Si | Ph | Su | Ch | Ni | Nr |
| SS 301LN | 0.03max | 2.00max | 1.00max | 0.045max | 0.015max | 16.5-18.5 | 6.0-8.0 | 0.07-0.20 |
| Element | Tensile strength (Outokumpu typical, cold rolled strip/sheet; EN 10002-1) | Yield strength (@strain 0.200 %) | Elastic modulus | Poisson’s ratio | Elongation at break (in 50 mm) |
| Metric | 765 MPa | 350 MPa | 193 GPa | 0.300 | 47% |
| Imperial | 111000 psi | 50800 psi | 27992 ksi | 0.300 | 47% |
Contact us to get a quick quote for your requirement.
Akor Stainless ensures the highest stainless steel 301 tubing standards through rigorous testing and certification programs. Extensive analyzes are performed on each formulation, including chemical composition analysis, mechanical property testing and validation theory. Certificates such as Mill Test Reports (MTR) and compliance with international standards have been issued to ensure product reliability and efficiency.

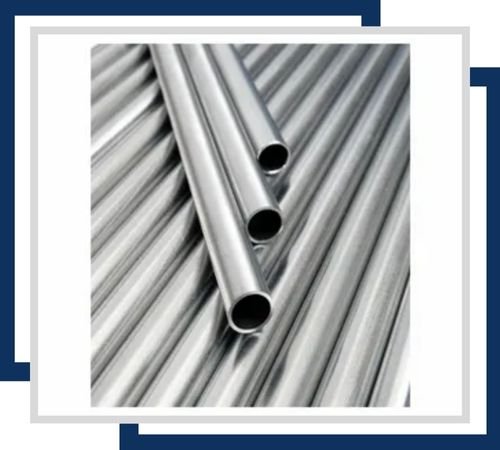

Known for its excellent corrosion resistance, Stainless Steel 301 Seamless Tubing is available in sizes ranging from 1/4 inch to 12 inches in diameter. It is typically used in structural applications due to its strength and durability.

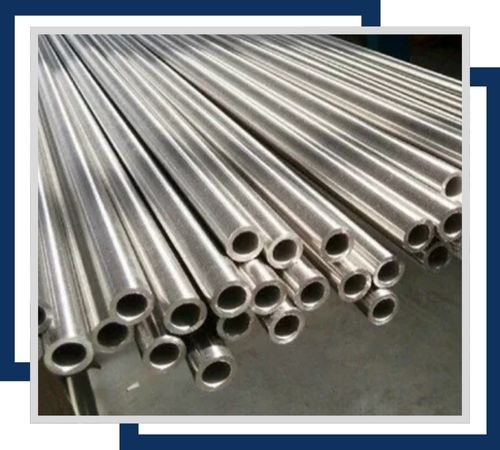

Offering good corrosion resistance, Stainless Steel 301 Welded Tubing comes in sizes from 1/2 inch to 6 inches in diameter. It is produced by welding flat-rolled stainless steel and is commonly used in various industrial applications.

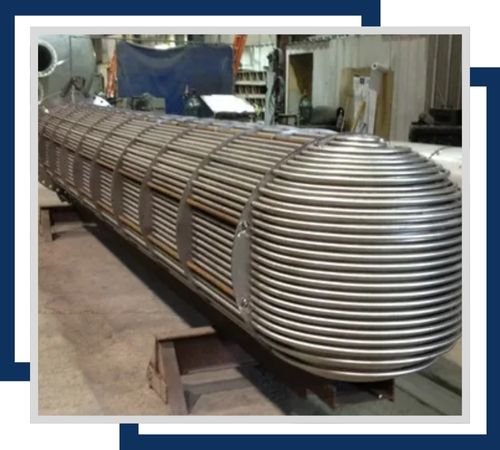

With robust corrosion resistance, Stainless Steel 301 Heat Exchanger Tubes are available in sizes from 1/4 inch to 2 inches in diameter. These tubes are designed for efficient heat transfer in heat exchangers.

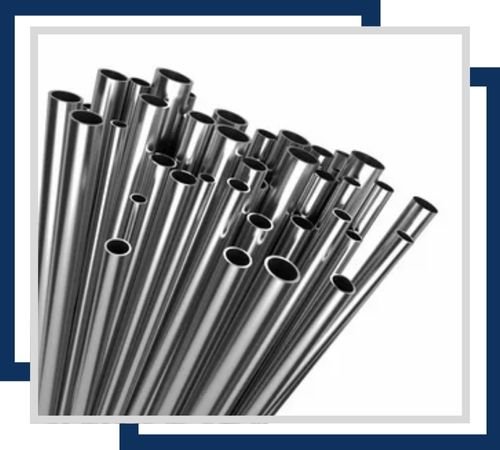

This tubing provides high corrosion resistance and is available in diameters ranging from 1/8 inch to 2 inches. It is used in various instrumentation and control applications due to its precision and strength.

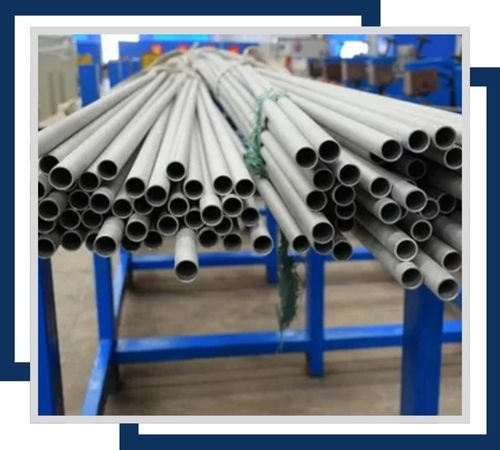

Featuring good corrosion resistance, Stainless Steel 301 Boiler Tubes come in sizes from 1 inch to 4 inches in diameter. They are utilized in boilers for steam and water applications due to their high thermal and mechanical properties.

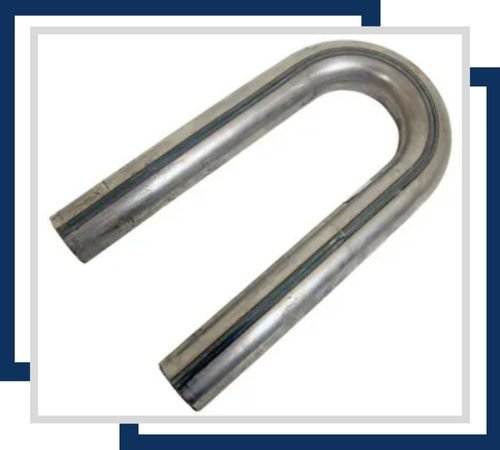

Known for their corrosion resistance, Stainless Steel 301 U-Tubes are typically available in sizes from 1/2 inch to 2 inches in diameter. They are often used in heat exchangers and other applications requiring curved tubing.

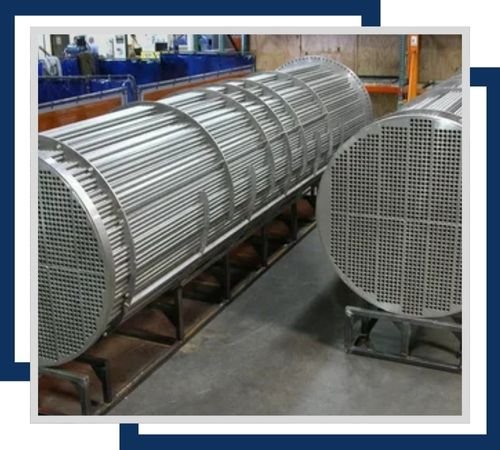

Offering strong corrosion resistance, Stainless Steel 301 Condenser Tubes are available in diameters from 1/2 inch to 4 inches. They are designed for use in condenser units where high thermal efficiency and resistance to corrosion are critical.

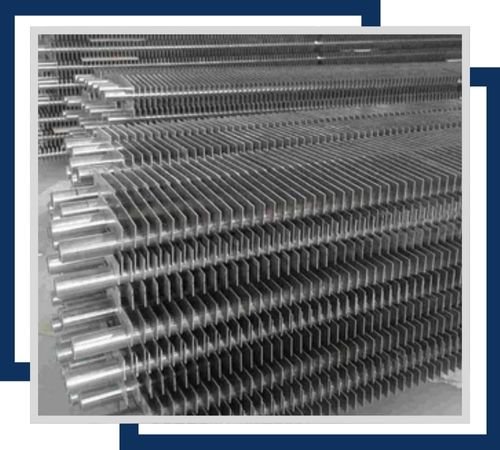

With excellent corrosion resistance, Stainless Steel 301 Fin Tubes are usually available in sizes from 1/2 inch to 2 inches in diameter. They are used in heat exchangers where increased surface area is required for heat transfer.
This unique combination of properties makes Stainless Steel 301 tubing a favorite for applications where durability is non-negotiable. You’ll find it forming the robust frames of railway cars and heavy-duty trucks, as well as in the structural components of aircraft. Beyond transportation, its strength is essential for conveyor systems, springs, and storage tanks. It’s also an excellent choice for architectural projects needing a sleek, modern look that can handle the elements, making it perfect for handrails, decorative trim, and building frameworks.
