Akor Stainless is a reputable manufacturer and supplier of Stainless Steel 422 Sheets and Plates, proudly based in Abuja, Nigeria. They offer top-notch stainless steel products that are built for outstanding strength, wear resistance, and heat stability. The SS 422 Sheets and Plates are crafted from martensitic stainless steels, specifically designed to thrive in high-temperature and high-stress settings. Akor Stainless takes great care to ensure that each sheet and plate is manufactured to meet international standards, promising durability and precise dimensions. These products find their place in industries like aerospace, power generation, and chemical processing, where top-notch mechanical performance and oxidation resistance are crucial for long-lasting reliability.
Stainless Steel 422 Sheets and Plates are made up of about 12–14% chromium, 0.2–0.3% carbon, 0.5–1% molybdenum, 0.5–1% nickel, and the rest is iron. This blend creates a robust martensitic structure that boasts excellent resistance to oxidation and scaling, even at temperatures reaching 650°C. The material shows impressive mechanical properties, with a tensile strength of around 760 MPa, yield strength of 450 MPa, and an elongation of 20%. SS 422 retains its hardness and mechanical stability even under cyclic heating and stress. It can be further hardened through heat treatment, striking a perfect balance between strength, corrosion resistance, and temperature endurance.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Cr 11.0 – 12.5% | Mo 0.9 – 1.30% | W 0.9 – 1.30% | Mn 0.50 – 1.0% | Ni 0.50 – 1.0% | |||||
| Si 0.50% Max | V 0.20 – 0.30% | C 0.20 – 0.25% | P 0.025% Max | Fe Balance |
| Property | Minimum | Maximum | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | 97 | 130 | |||||||
| Tensile Strength Range (Rm) (ksi) | 130 | 160 | |||||||
| Elongation (AL=5 x Ø) | 15.0% | 17.0% | |||||||
| Hardness, Rockwell (C) | – | 21 | |||||||
| Modulus of Elasticity (GPa): 76 | |||||||||
| Machineability General Index: – | |||||||||
| Density (lb/ft3) | Electrical conductivity (% IACS) | Thermal conductivity (BTU/h-ft-°F) | Specific heat capacity (BTU/lb-°F) | Thermal expansion (µm/m-K) |
| .2817 | 4.7% | 14 | 0.11 | 10 |
Contact us to get a quick quote for your requirement.

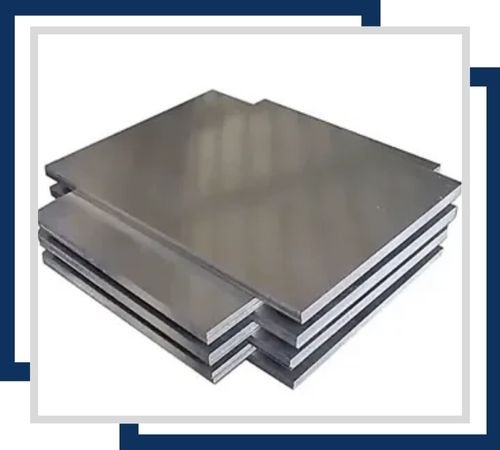

SS 422 cold rolled sheets are stainless steel material that is strong, durable, and furnished with a smooth surface. These sheets are available in various thicknesses, from 0.1mm to 6mm and can be manufactured with the desired width and length for any industrial usage.

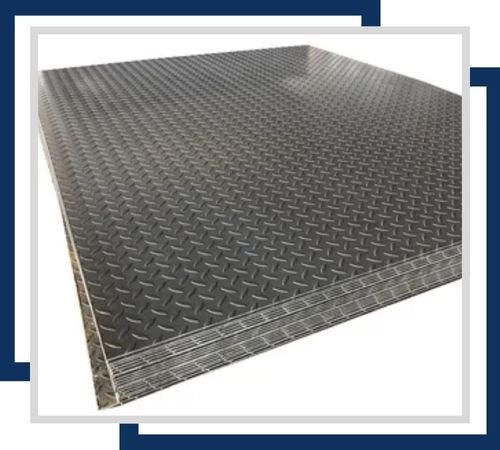

SS 422 chequered plates are highly durable stainless steel sheets with a raised design that increases grip and limits slipping. Used for flooring, walkways, and other industrial applications, chequered plates vary in sizes but are usually 2mm to 8mm thick.
SS 422 perforated plates are stainless steel sheets designed with precision holes for industrial use. The durability and corrosion resistance of these plates are excellent and usually available in sizes from 0.5mm to 12mm in thickness and in a customizable hole pattern, making them versatile in performance.

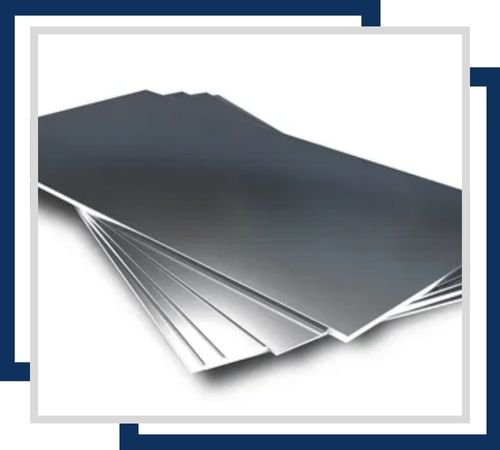

These are thin sheets in stainless steel 422, precision engineered to withstand excellent corrosion resistance and high temperatures. They are usually found in sizes 0.1mm to 5mm in thickness. There is always a need to make precise alignment and gap filling in several industrial applications.

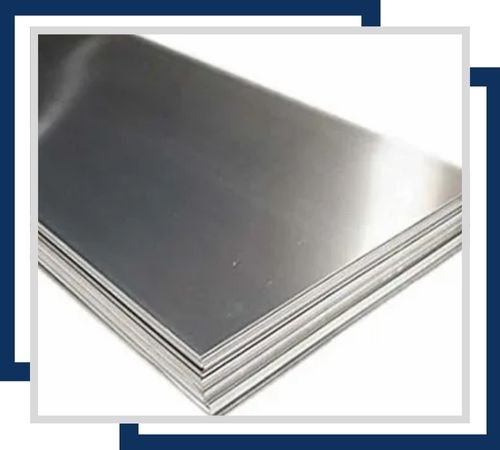

SS 422 Polished Plates are most resistant to corrosion yet very strong and offer a finishing finish quality. Known to be of high quality, the plates vary in size, and may differ in thickness that can range from 3mm up to 100mm, thus giving versatility to various industries.
Akor Stainless is committed to delivering a seamless customer experience by providing complete documentation for the Stainless Steel 422 Sheet and Plate products, ensuring top-notch quality. Commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plans, and NABL-approved lab test reports are given from Akor Stainless. These papers are proof of our authenticity and superior quality products. Furthermore, we provide test certificates for our Stainless Steel 422 Sheets and Plates, which include MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates, which demonstrate our customer-centric approach and excellence.
Stainless Steel 422 Sheets and Plates are perfect for applications that demand high strength and oxidation resistance in elevated temperatures. They are commonly used for turbine blades, compressor parts, valves, and rotors in the aerospace and power generation sectors. In petrochemical facilities, you’ll find them in heat exchangers and components for high-temperature furnaces. Their impressive hardness and durability also make them a great choice for manufacturing shafts, fasteners, and mechanical tools. SS 422 Sheets and Plates consistently perform well in environments exposed to steam, hot gases, and corrosive chemicals, ensuring reliability across various applications.
