AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod

Home > Electrodes > AWS Class ER316LSi Mig & Tig Filler Welding Wire & Rod

AWS A5.9 ER316LSi MIG & TIG Welding Filler Rod Manufacturer in Abuja, AWS Class ER316LSi MIG & TIG Filler Metal Stockist in Port Harcourt, MIG & TIG Filler Rods Kaduna, MIG & TIG Filler Metal Stockist Kano, AWS Class ER316LSi Tungsten Inert Gas (TIG) Welding Ibadan, AWS Class UNS S31688 MIG and TIG Filler Welding Wire and Rod Ibadan

Akor Stainless is a top-notch manufacturer and supplier located in Abuja, Nigeria, focusing on high-quality stainless steel welding consumables. One of their standout products is the **AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod**, which is celebrated for its outstanding performance, reliability, and resistance to corrosion. This filler wire is crafted for both industrial and commercial uses, ensuring smooth weldability and a fantastic finish, even in tough conditions. Akor Stainless adheres to international standards, delivering dependable materials for the fabrication, maintenance, and construction sectors. With a strong commitment to quality and innovation, the company is dedicated to supporting Nigeria’s expanding engineering and manufacturing industries.

Stainless Steel Industrial ER316LSi MIG / TIG Filler Wire Price List in Ibadan, Aws Class ER316LSi MIG /TIG Filler Welding Wire Ibadan, Stainless Steel ER316LSi Mig & Tig Filler Wire Supplier in Abuja, Nigeria, SS ER316LSi MIG & TIG Filler Metal Distributor in Ibadan, AWS Class ER316LSi MIG & TIG Filler Metal Exporters Port Harcourt, UNS S31688 AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod Ibadan

The **AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod** is made up of Chromium (18–20%), Nickel (11–14%), and Molybdenum (2–3%), featuring a low carbon content (<0.03%) and added Silicon (0.65–1.0%) to enhance weld fluidity. This unique blend provides excellent resistance to intergranular corrosion and pitting in chloride environments. Its mechanical properties include a tensile strength of around 570 MPa, yield strength of 350 MPa, and an elongation of 35%. The alloy ensures a smooth bead appearance, stable arc characteristics, and impressive mechanical integrity post-welding.

AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod Specifications

Classification	AWS A5.9, ER316LSi
Form	MIG spools, TIG cut lengths, Reels and Coils
Type Of Welding	Inert Gas Welding
Current	MIG-DCEP / TIG-DCEN
Diameters	.023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8”
Standard TIG straight lengths are available	36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request.
AWS ER316LSi MIG & TIG Filler Metal Application & uses	Hardware tools Metallurgy Machinery Construction Shipbuilding Petroleum Chemical plant Power sector Gas Industry

AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod Chemical Composition

C	Cr	Ni	Mo	Mn	Si	P	S
0.03	18.0-20.0	11.0-14.0	2.0-3.0	1.0-2.5	0.65-1.0	0.03	0.03

AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod Mechanical Properties

Yield, kpsi:	64
Tensile Strength, kpsi:	90
Elongation%, min:	37

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod from Akor Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

Types of AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod

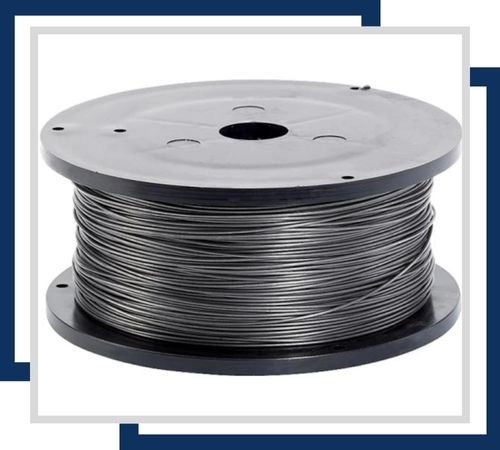

Stainless Steel ER316LSi MIG Filler Wire

Stainless Steel ER316LSi MIG Filler Wire is designed for MIG welding applications with excellent corrosion resistance, especially in environments with chlorides and chemicals. It typically comes in sizes ranging from 0.030 inches (0.8 mm) to 0.045 inches (1.2 mm) in diameter. The wire provides good weld bead appearance and reduces spatter.

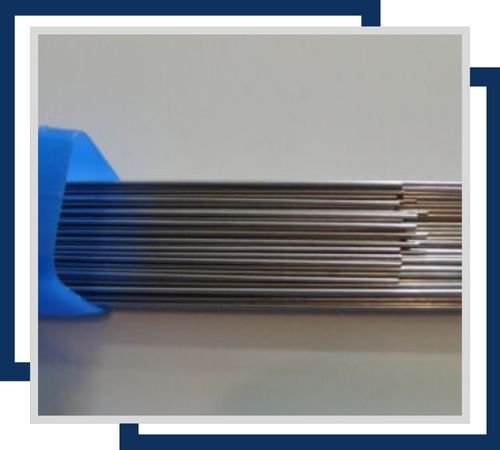

Stainless Steel ER316LSi TIG Filler Wire

Stainless Steel ER316LSi TIG Filler Wire is suitable for TIG welding and offers enhanced corrosion resistance, particularly in harsh environments. It is available in sizes from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm) in diameter. The wire ensures high-quality, clean welds with minimal oxidation.

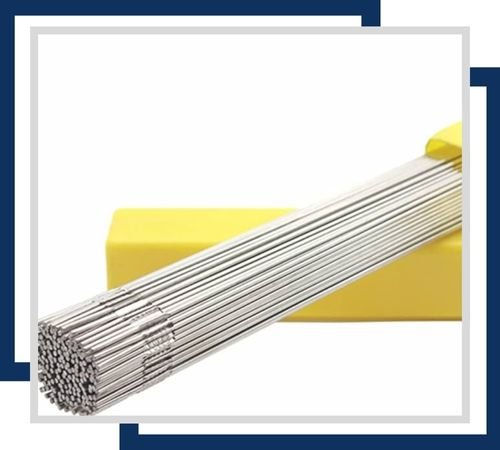

Stainless Steel ER316LSi TIG Filler Rod

Stainless Steel ER316LSi TIG Filler Rod is used for TIG welding stainless steel, providing superior resistance to pitting and crevice corrosion. Commonly available in lengths of 36 inches (914 mm) and diameters from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm). It delivers excellent weld strength and smooth, clean welds.

Each AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod is carefully packed using high-quality materials to prevent any damage or contamination during transit. We prioritize timely deliveries also guaranteeing quick and efficient transportation to meet our clients needs. Additionally all relevant documentation regarding the product is provided at the time of delivery assuring full transparency and satisfaction for our valued customers.

AWS/ASME 5.14 ER316LSi MIG & TIG Filler Wire Manufacturer in Abuja, SFA A5.9 ER316LSi MIG & TIG Filler Rod Supplier in Port Harcourt, Alloy ER316LSi Welding Mig & Tig Filler Wire Exporter in Lagos, UNS S31688 Mig and Tig Stick Filler Metal Trader in Kaduna, AWS ER316LSi Mig & Tig Filler Metal Rod & Wire Kano, AWS Class ER316LSi Metal Inert Gas (MIG) Welding Kaduna

AWS Class ER316LSi MIG and TIG Filler Welding Wires and Rods Uses

The **AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod** is commonly used for welding austenitic stainless steels, especially grades 316 and 316L. It’s perfect for applications that demand high corrosion resistance and strength, such as in chemical processing plants, food and beverage equipment, pharmaceutical machinery, marine structures, and the pulp and paper industries. Its low carbon content helps reduce carbide precipitation, while silicon enhances wetting and bead appearance during the welding process. Suitable for both manual and automatic welding, it consistently delivers reliable performance in fabricating tanks, piping systems, heat exchangers, and other stainless steel components exposed to harsh environments.
